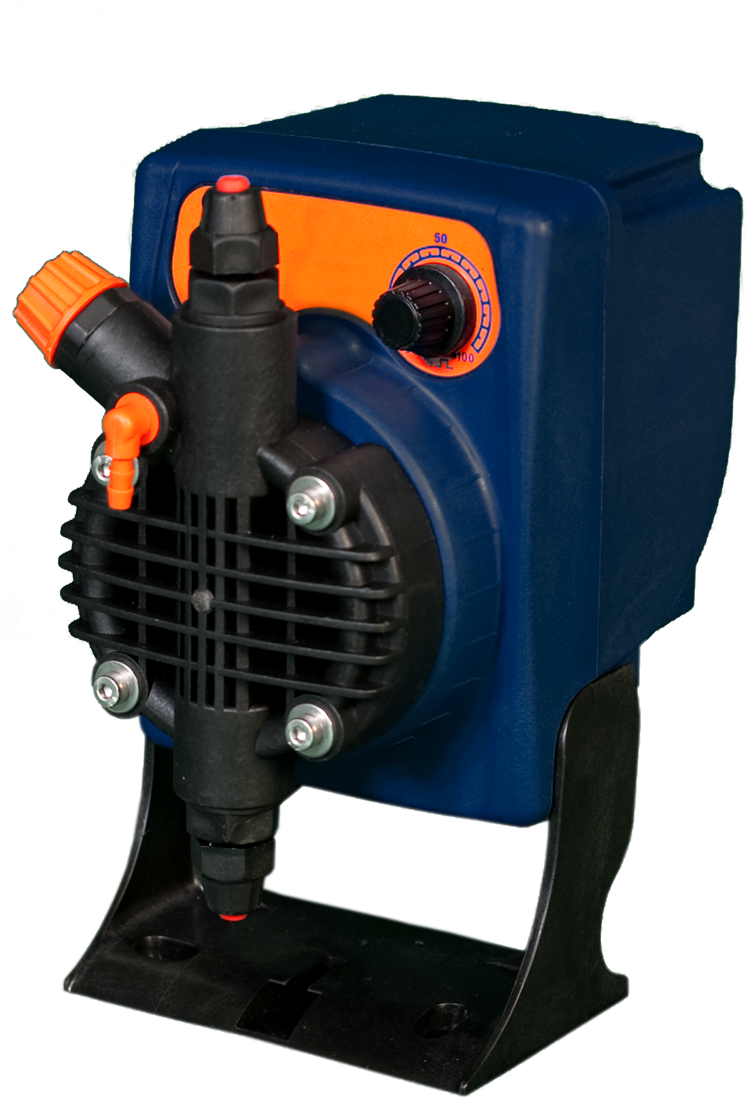

PKX

Solenoid Driven Chemical Dosing Pump

Low voltage options

Available in a wide range of voltage options, including 12vdc - 24vac/vdc

Compact and Robust

The PKX range has an adjustable bracket that enables the pump to be either wall or base mounted.

The PKX is the optimum solution for compact chemical dosing systems.

The PKX range of Solenoid Dosing Pumps is suitable for Dosing Systems which feature low flow rates (up to 10 L/H).

The PKX range of Solenoid Dosing Pumps is suitable for Dosing Systems which feature low flow rates (up to 10 L/H). Available with either manual or proportional dosing control and an array of pump heads, the PKX is the optimum solution for smaller dosing systems.

PRODUCT INFO

  • Compact Solenoid dosing pump with configurable foot or wall mount bracket
  • Flow rates up to 10 L/H
  • Operating pressures up to 6 Bar
  • Manual or proportional dosing models
  • Pump head options include PP or PVDF with lip or ceramic ball valves; Auto-bleed available
  • 230v or 120v models available
  • Low voltage models available (12Vdc, 24Vdc or 24Vac)
  • Level control (available as an optional for the MA/A – level probe supplied with MA/AL)
  • Supplied with accessory kit as standard (Incldues: PP or PVDF Injection Valve, Foot Filter, 2m each of suction/discharge tubing, screws & plugs for wall mounting)
  • Available with removable power cable
  • PKX0103901 and PKX0102801

SPECIFICATIONS

Model Flow Rate (L/H) Pressure (BAR)
0105 1 5
0206 2 6
0303 3 3
0505 5 5
0702 7 2
0702 10 1
  • TECHNICAL SPECIFICATION

    • Can be foot or wall mounted.
    • Anti-acid plastic casing IP65 protection.
    • Pump supplied with manual air bleed pump head.
    • Standard power supply: 230V – 50/60Hz.
    • Optional 24V 50/60Hz, 24Vdc, 12Vdc.
    •
  • ACCESSORIES

      • Pump Head: PP also available in PVDF with optional autobleed functionality
      • Diaphragm: PTFE
      • Valves: FPM (Viton) lip valve as standard; Options: EPDM (Dutral) or TFE/P (Aflas). Available with ceramic ball valves
      • Connections: 4×6 mm

      Included Accessories:

      • Standard Foot filter (as shown on the left): PP-FPM (Viton); available in PVDF (FPM or TFE-P) with ceramic ball valves
      • Standard Injection valve: PP-FPM (Viton); available in PVDF (FPM or TFE-P) with ceramic ball valves
      • Tube Kit: 2m PVC suction and bleeding hose ; 2m PE delivery hose

Find out more about the PKX range below...

PKX MA/A

  • Analogue Control
  • Manual Flow Adjustment (from 0 – 100%)
  • Low Power Consumption (17 W)

PKX MA/AL

  • Analogue Control
  • Manual Flow Adjustment (from 0 – 100%)
  • Level Control
  • Low Power Consumption (17 W)
  •

PKX FT- A

  • Proportional Dosing Pump (Free Tension Contact)
  • Volumetric Proportional (1 Dose per Pulse)
  • Volumetric with Timer (Timed Dosing [0 to 60 seconds] per Pulse)
  • Level Control (Supplied without Probe)
  •
