Control Panels

Panel Mounted Systems

Simple Installation

A panel mounted system for ease of installation and use.

Versatile

Choice of eSelect, eSelect M, eSelect M2 and eControl controllers

Control panels for the monitoring and regulation of dosing systems

Complete system panel for easy installation

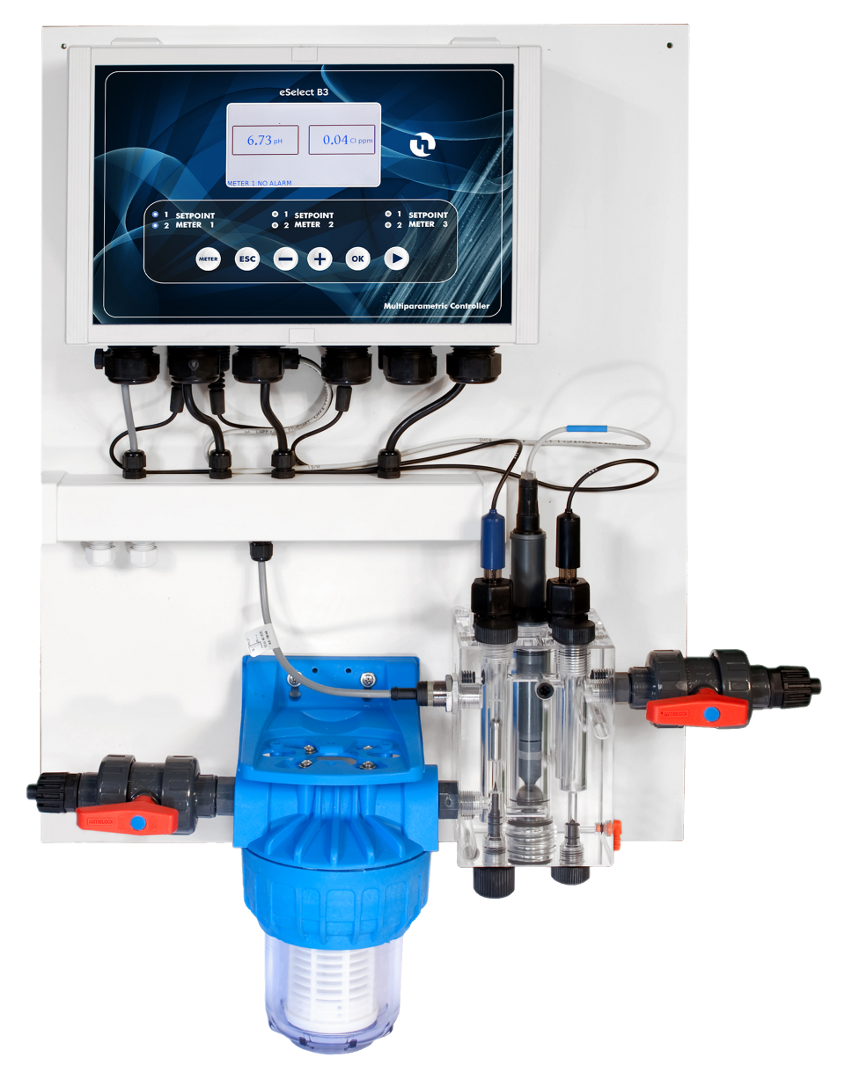

Our controllers and dosing pumps are available as part of a panel mounted system for ease of installation and use. The panel is designed to be connected to a sample line from a dosing system, from which the pH, ORP and Chlorine levels can be determined which is then used by the attached controller or pump to regulate the dosing for the whole system.

PRODUCT INFO

  • Control panels for the monitoring and regulation of dosing systems
  • pH, ORP & Chlorine levels
  • Choice of eSelect, eSelectM or eControl controllers
  • Panel mounted dosing pumps include eOne, DLX or ePool
  • Complete system panel for easy installation
  • Includes controller or pump connected to monitoring probes
  • Block valves with connection for 4×6 or 10×14 mm tubing
  • Water filter with 150 micron cartridge
  • Up to three channels for measurement
  • Single, double or triple probe holder dependant on controller/pump configuration
  • Programmable metering modes
  • Two set points per metering channel
  • Min/Max Alarm Output
  • On/off or Proportional dosing (mA control)
  • Temperature measure & compensation
  • Password protection (AG-Select &eOne only)
  • Expert & Simple modes (AG-Select & eSelect only)
  • Network/PC connectivity (eSelect only)
  • Downloadable USB data recording (eSelect only)

Find out more about our Control Panels below...

eControl Panel


  • Suitable for pH, ORP & Chlorine regulation
  • Up to two measurement channels
  •

eOne Panel


  • Features eOne PLUS dosing pumps with integral controllers
  • Suitable for pH, ORP & Chlorine regulation
  • Larger panel available for multiple pumps
  •

eSelect M Panel


eSelect M Panel
  • Features eOne PLUS dosing pumps with integral controllers
  • Suitable for pH, ORP & Chlorine regulation
  • Larger panel available for multiple pumps
  •

eSelect M Touch Panel

  • Features eOne PLUS dosing pumps with integral controllers
  • Suitable for pH, ORP & Chlorine regulation
  • Larger panel available for multiple pumps
  • Advanced password function
  • Touch screen controller
